Indisputable craftsmanship, for over a quarter century
In 1989 Dewulf achieved a milestone with the introduction of the R3000, the very first self-propelled three-wheeled offset potato harvester with gooseneck steering. The striking harvester stood out from the rest thanks to unprecedented manoeuvrability and the ability to continue harvesting when others were forced to stop. Since its introduction, we have carefully continued to develop and improve the machine. In 2014 Dewulf presented the fifth generation of the reference in self-propelled 2-row sieving harvesters.
Always ready... anytime, anywhere
In wet or dry conditions, hilly or flat, the R3060 has earned its stripes through countless productive working hours. What you can expect from the R3060:
- Superior quality of the end product
- Maximum productivity under all conditions
- Extreme ease of maintenance
Optimum result ensured

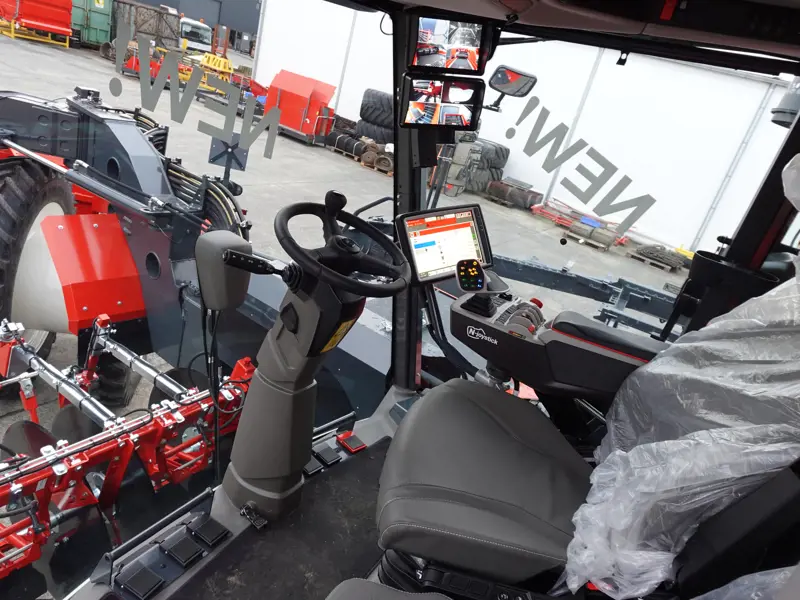

With its standard equipment and additional options, the R3060 assists the driver in every way possible to achieve the best results when harvesting products such as potatoes. With the arrangement of the spacious new Claas cabin, Dewulf has created a very enjoyable working environment focused on the driver. The joystick operation and control-units for the harvesting and driving sections provide the driver with the luxury and simplicity required to operate the machine. The Scania DC9 385A Tier V Final (Ad Blue) engine generates a powerful 350 hp and will impress you with its smooth running and low consumption.
Multiple variants thanks to modular construction
Countries and regions each have their unique characteristics. That leads to specific requirements and needs for a harvester. The R3060 is therefore available in different variants to accommodate those specific circumstances. With a wide range of options, Dewulf offers customised solutions:

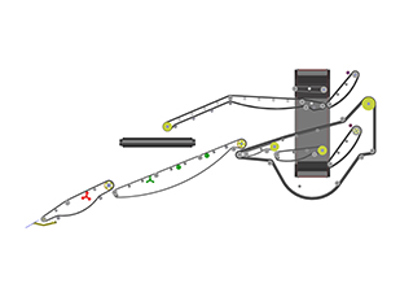

RA3060
3 sieving webs |
Haulm roller |
Lower hedgehog conveyor |
Cleaning module |
Upper hedgehog conveyor |

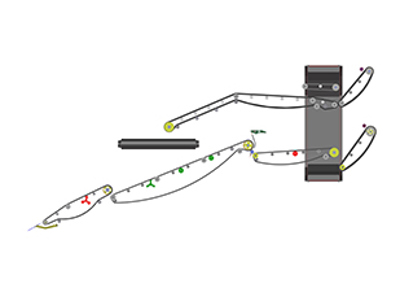

RA3060 (2 haulm rollers)
4 sieving webs |
2 haulm rollers |
Lower hedgehog conveyor |
Cleaning module |
Upper hedgehog conveyor |

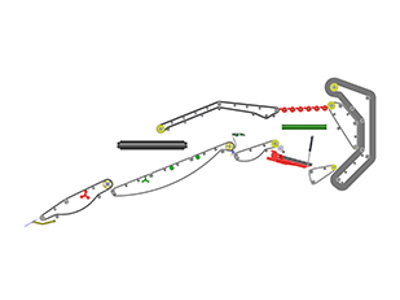

RCA3060
3 sieving webs + 1 closed |
Haulm roller |
Axial rollers below |
Optional Easy-Clean above (3 pair or 3+3 pair) |
- ■ = standard
- o = Optional
- - = Not applicable
RA3060 - RA3060 (2 haulm roller)
Harvesting unit | ||||
RA3060 | RA3060 with 2 haulm rollers | |||
Harvesting channel 1500 mm | ■ | |||
Harvesting channel 1650 mm | o | |||
APC (Automatic Pressure Control) | ■ | - | ||
Syncro Flow | ■ | |||
DAS (Dewulf Automatic Steering) | o | o | ||
ADC (Automatic Depth Control) | o | o |
Sieving chains | ||||
RA3060 | RA3060 with 2 haulm rollers | |||
Length sieving conveyor 1 [mm] | 2065 | |||
Length sieving conveyor 2 [mm] | 3820 | |||
Length sieving conveyor 3 [mm] | 3030 | 1280 | ||
Length sieving conveyor 4 [mm] | - | 1940 |
Haulm separation | ||||
RA3060 | RA3060 with 2 haulm rollers | |||
Haulm chopper with ADC | ■ | ■ | ||
Haulm roller(s) | 1 | 2 | ||
Haulm web | - | - |
Cleaning | ||||
RA3060 | RA3060 with 2 haulm rollers | |||
Agitator sieving conveyor 1 | o | o | ||
3 agitators sieving conveyor 2 | ■ | ■ | ||
Agitator sieving conveyor 3 | o | - | ||
Hedgehog unit 1 | ■ | ■ | ||
Flexyclean® | - | - | ||
Cleaning module below | ■ | ■ | ||
Hedgehog unit 2 | ■ | ■ | ||
Sorting unit | o | o |
Dimensions | ||||
RA3060 | RA3060 with 2 haulm rollers | |||
Total length [mm] | 12 800 | 12 800 | ||
Total width [mm] | 3500 | |||
Total height [mm] | 4000 | |||
Weight from [kg] | 19 750 | 19 750 |
RCA3060
Harvesting unit | |||
Harvesting channel 1500 mm | ■ | ||
Harvesting channel 1650 mm | o | ||
APC (Automatic Pressure Control) | ■ | ||
Syncro Flow | ■ | ||
DAS (Dewulf Automatic Steering) | o | ||
ADC (Automatic Depth Control) | o |
Sieving chains | |||
Length sieving conveyor 1 [mm] | 2065 | ||
Length sieving conveyor 2 [mm] | 3820 | ||
Length sieving conveyor 3 [mm] | 930 | ||
Length sieving conveyor 4 [mm] | 795 |
Haulm separation | |||
Haulm chopper with ADC | ■ | ||
Haulm roller | ■ |
Cleaning | |||
Agitator sieving conveyor 1 | o | ||
3 agitators sieving conveyor 2 | ■ | ||
Agitator sieving conveyor 3 | - | ||
Hedgehog unit 1 | - | ||
Axial module below | ■ | ||
Easy-Clean module below | - | ||
Cleaning module below | - | ||
Easy-Clean 3 rollers above | o | ||
Easy-Clean 6 rollers above | o | ||
Hedgehog unit 2 | - | ||
-- 2 deflecting rollers on flat hedgehog belt | - | ||
-- 2x2 rows of rubber studs | - |
Dimensions | |||
Total length [mm] | 12 800 | ||
Total width [mm] | 3500 | ||
Total height [mm] | 4000 | ||
Weight from [kg] | 21 500 |
