Experience the same productivity as a self-propelled harvester

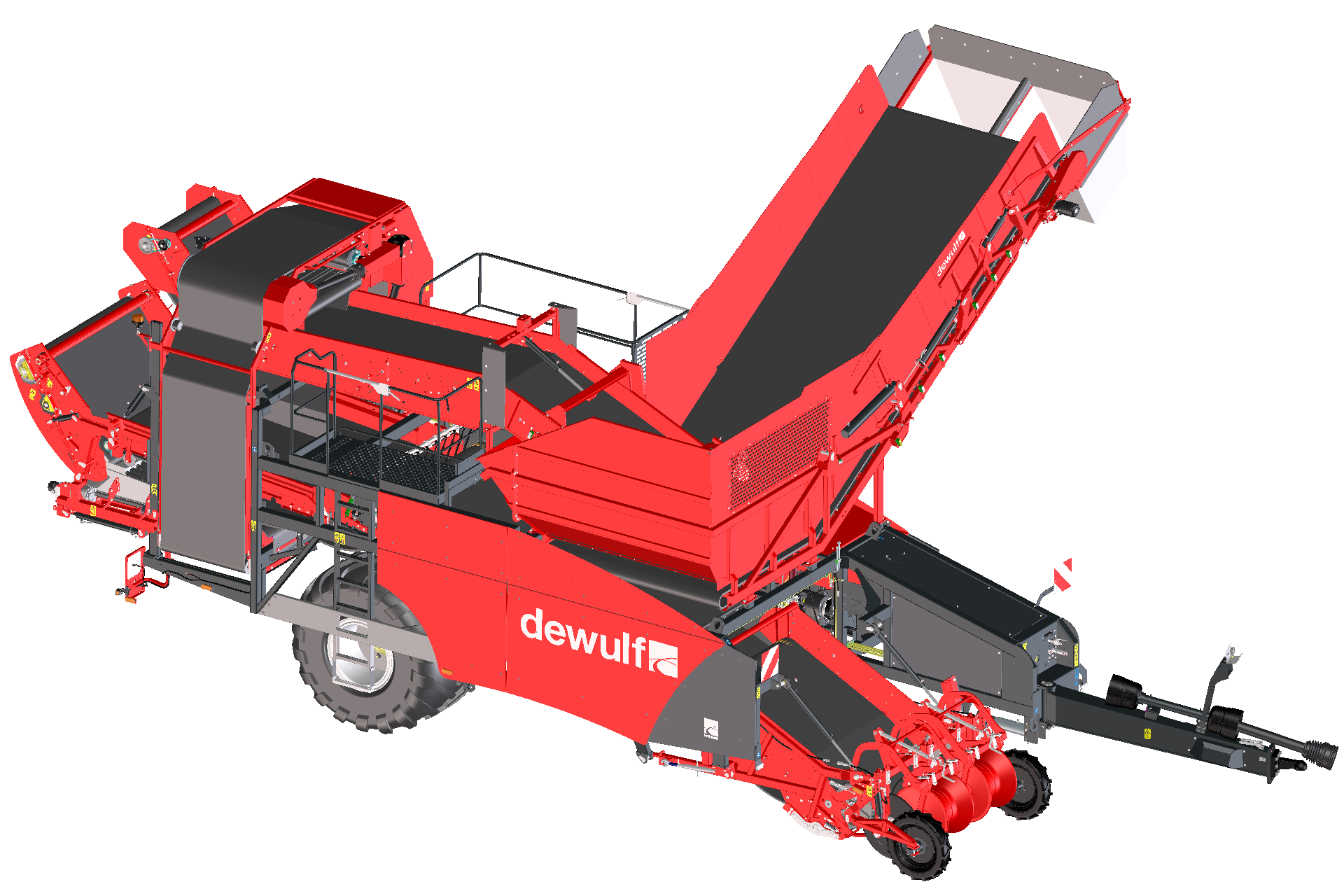

With the R2060, Dewulf has transferred the tested technology of the best-in-class self-propelled 2-row sieving harvester, the R3060, to a trailed version. The R2060 is a high-performance offset harvester designed for high processing speeds and ease of use while ensuring the quality of the potatoes. The R2060 also has the largest tyre size in its class, keeping ground pressure to an absolute minimum.
Always ready... anytime, anywhere
In wet or dry conditions, hilly or flat, the R2060 is your trusted companion during the harvesting season:
- Superior quality of the product
- Maximum productivity under all conditions
- Extreme ease of maintenance
Optimum result ensured
With its standard equipment and additional options, the R2060 assists the driver in every way possible to achieve the best results when harvesting products such as potatoes. The R2060 has a 10,7 m³ unloading-on-the-move bunker as standard. In terms of operation, the driver has an ergonomic joystick and control-unit.
Four variants thanks to modular construction
Countries and regions each have their own unique characteristics. This results in specific requirements and needs for a harvester. The R2060 is therefore available in 4 different variants to accommodate those specific circumstances. With a wide range of options, Dewulf offers customised solutions.
RS2060
3 sieving webs |
Haulm roller |
Lower hedgehog conveyor |
Upper hedgehog conveyor |
RA2060
3 sieving webs |
Haulm roller |
Lower hedgehog conveyor |
Cleaning module |
Upper hedgehog conveyor |
RQA2060
3 sieving webs + 1 closed |
Haulm conveyor |
Lower hedgehog conveyor |
Cleaning module |
Upper hedgehog conveyor |
RJA2060
3 sieving webs |
Haulm roller |
Lower hedgehog conveyor |
Cleaning module |
Flat upper hedgehog conveyor with double rollers (optional 4 row finger system) |
- ■ = standard
- o = Optional
- - = Not applicable
RS2060 - RA2060 - RQA2060
Harvesting unit | |||
RS2060 | RA2060 | RQA2060 | |
Harvesting channel 1500 mm | ■ | ||
Harvesting channel 1650 mm | o | ||
APC (Automatic Pressure Control) | ■ | ||
Syncro Flow | ■ | ||
DAS (Dewulf Automatic Steering) | ■ | ||
ADC (Automatic Depth Control) | o |
Sieving chains | |||
RS2060 | RA2060 | RQA2060 | |
Length sieving conveyor 1 [mm] | 2065 | ||
Length sieving conveyor 2 [mm] | 3820 | ||
Length sieving conveyor 3 [mm] | 2160 | 3030 | 1000 (closed) |
Length sieving conveyor 4 [mm] | - | - | 2345 |
Haulm separation | |||
RS2060 | RA2060 | RQA2060 | |
Haulm roller(s) | 1 | 1 | - |
Haulm web | - | - | ■ |
Cleaning | |||
RS2060 | RA2060 | RQA2060 | |
Agitator sieving conveyor 1 | o | ||
2 agitators sieving conveyor 2 | ■ | ||
3 agitators sieving conveyor 2 | o | ||
Agitator sieving conveyor 3 | o | o | - |
Hedgehog unit 1 | ■ | ■ | |
Cleaning module below | - | ■ | ■ |
Hedgehog unit 2 | ■ | ■ | ■ |
Sorting unit | o | o | - |
Tracteur | |||
RS2060 | RA2060 | RQA2060 | |
Tracteur minimum [cv] | 135 | 150 | 155 |
Prise de force 1000 rpm | ■ | ||
Prise de force 540 rpm | o |
Dimensions | |||
RS2060 | RA2060 | RQA2060 | |
Total length [mm] | 11 030 | 12 020 | 13 300 |
Total width [mm] | 3500 | ||
Total height [mm] | 4000 | ||
Weight from [kg] | 10 860 | 11 950 | 12 632 |
RJA2060
Harvesting unit | ||
RJA2060 | ||
Harvesting channel 1500 mm | ■ | |
Harvesting channel 1650 mm | o | |
APC (Automatic Pressure Control) | ■ | |
Syncro Flow | ■ | |
DAS (Dewulf Automatic Steering) | ■ | |
ADC (Automatic Depth Control) | o |
Sieving chains | ||
RJA2060 | ||
Length sieving conveyor 1 [mm] | 2065 | |
Length sieving conveyor 2 [mm] | 3820 | |
Length sieving conveyor 3 [mm] | 3030 |
Haulm separation | ||
RJA2060 | ||
Haulm roller | ■ |
Cleaning | ||
RJA2060 | ||
Agitator sieving conveyor 1 | o | |
2 agitators sieving conveyor 2 | ■ | |
3 agitators sieving conveyor 2 | o | |
Agitator sieving conveyor 3 | o | |
Hedgehog unit 1 | ■ | |
Cleaning module below | ■ | |
Hedgehog unit 2 | ■ | |
-- 2 deflecting rollers on flat hedgehog belt | ■ | |
-- 2x2 rows of rubber studs | o |
Tracteur | ||
RJA2060 | ||
Tracteur minimum [cv] | 150 | |
Prise de force 1000 rpm | ■ | |
Prise de force 540 rpm | o |
Dimensions | ||
RJA2060 | ||
Total length [mm] | 12 800 | |
Total width [mm] | 3500 | |
Total height [mm] | 4000 | |
Weight from [kg] | 13 120 |
