Product-friendly with different options

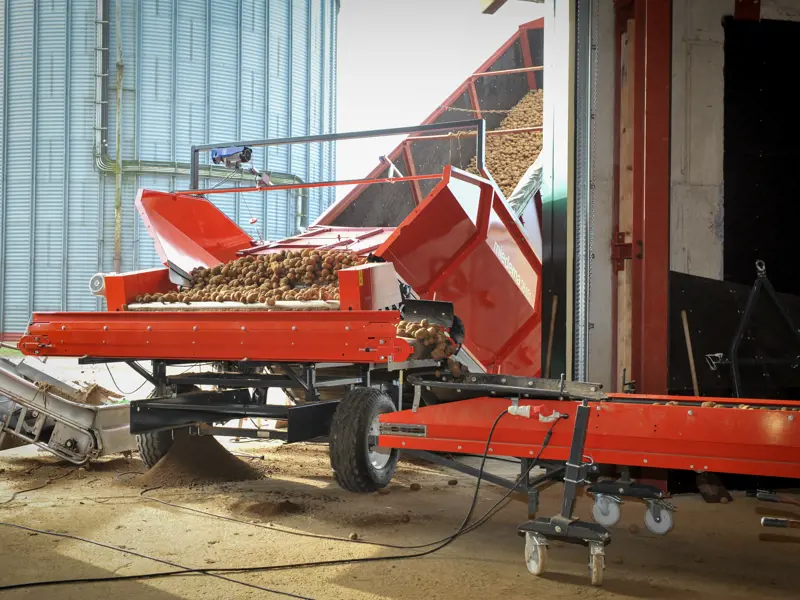

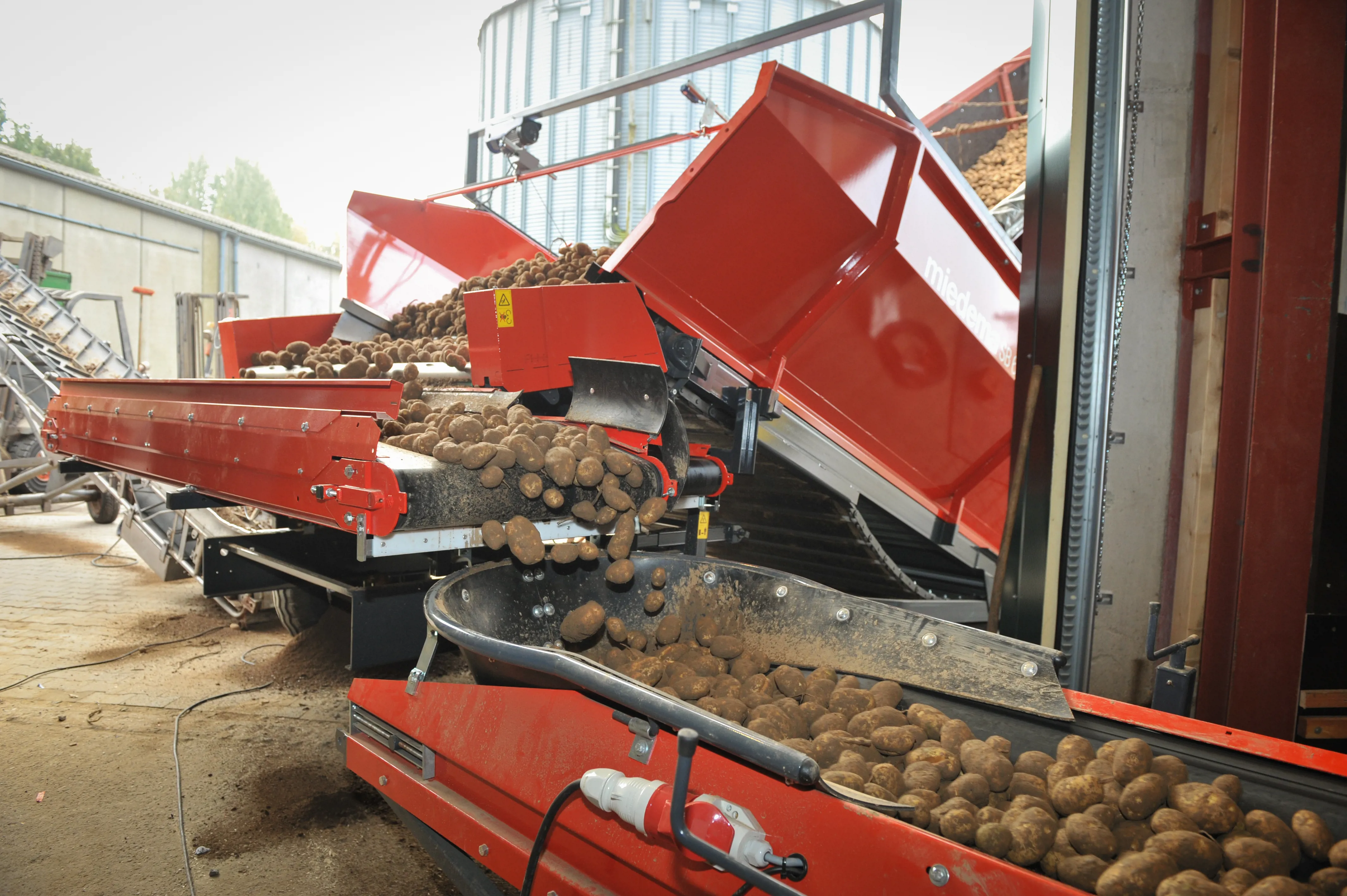

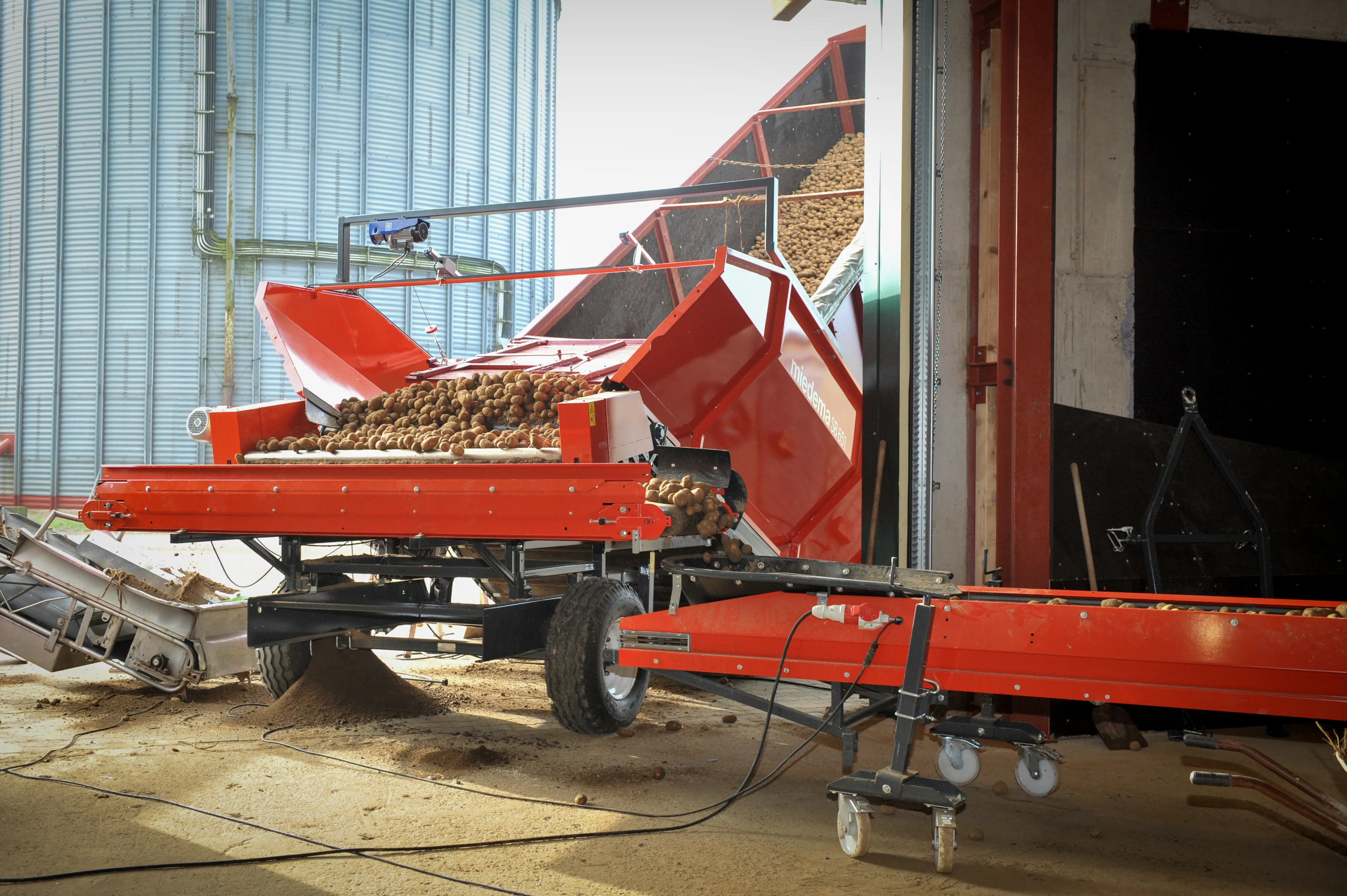

The SB 651 is a high-performance receiving hopper with a bunker capacity of 12-14 m³ and a 2 metre wide product-friendly bunker floor. Various units can be positioned downstream of the bunker. You can select from different cleaning units, sorting units or possibly an inspection table.
The driving force for your storage process
The Miedema receiving hoppers form the basis for reliable storage with the desired buffer, transport, cleaning and sorting capacity. Our receiving hoppers are your guarantee for product-friendliness and versatility. And most importantly: The operating costs always remain enjoyably low.
Compact and productive at the same time
The SB series is the most compact series within our product range of Miedema receiving hoppers. Nevertheless, the SB receiving hoppers can realise a high capacity of up to 150 tonnes per hour. Thanks to the machine options, these receiving hoppers can be perfectly attuned to the respective local conditions. The SB series is characterised by a robust construction of the bunker chassis. The heavy-duty, especially hardened bunker chains guarantee a maximum service life with a minimum degree of maintenance. Loss of product is prevented by the bunker’s especially high side boards and the sturdy double rubber flaps for a perfect seal of the supply. The SB Series’ design has already proven its worth on many farms.
- ■ = standard
- o = Optional
- - = Not applicable
Dimensions | |
Largest width [cm] (without discharge belts) |
311 |
Height [cm] (depending on the options) | 270 - 370 |
Entry width [cm] | 295 |
Live bottom width [cm] | 200 |
Live bottom length [cm] | 350 |
Effective hopper volume [m³] | 12 - 14 m3 |
Operating speed | |
Live bottom speed [m/min] | 0,1 - 4,6 |
Maximum driving speed [km/h] | 6 |
Bunker | |
Variable input board | o |
Start / Stop with IR sensor level control | o |
Onion mill | o |
SB-Control | o |
Start-Control functionality | ■ |

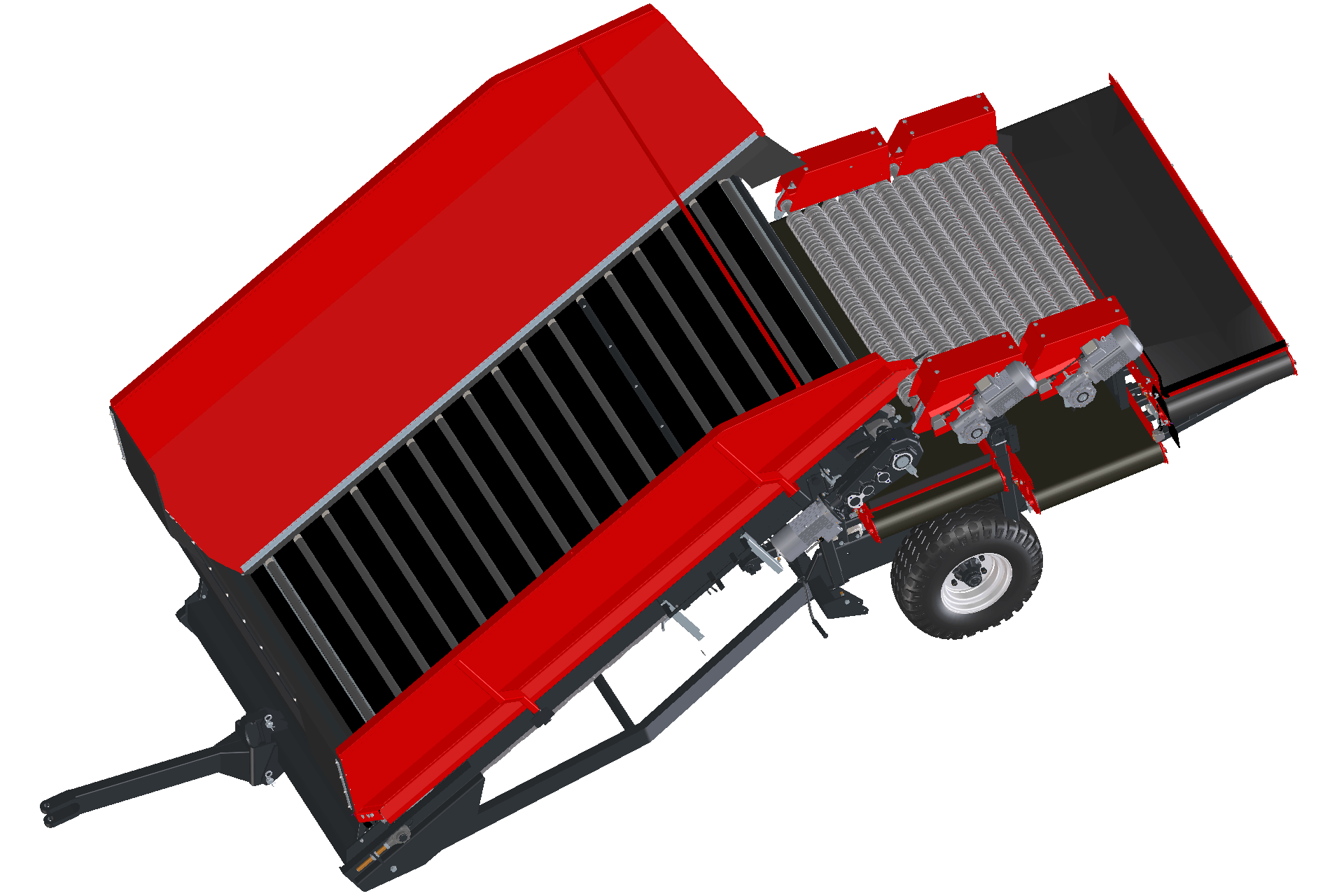

Cleaning & sorting | |
Flow-Pin | o |
Smart-Pin | o |
Roller unit with 6 or 8 rollers | o |
2nd roller unit with 6 rollers | o |
2nd roller unit with 8 rollers | o |
Roller unit with chain drive, 2 speeds | ■ |
Star rollers with 7 or 11 fingers | o |
Smooth rollers | o |
Metal or PU coil rollers | o |
Sorting rollers | o |
Guide on product discharge belt | - |
Inspection table | o |
Power outlet (20 A) on machine | o |
