Product-friendly storage

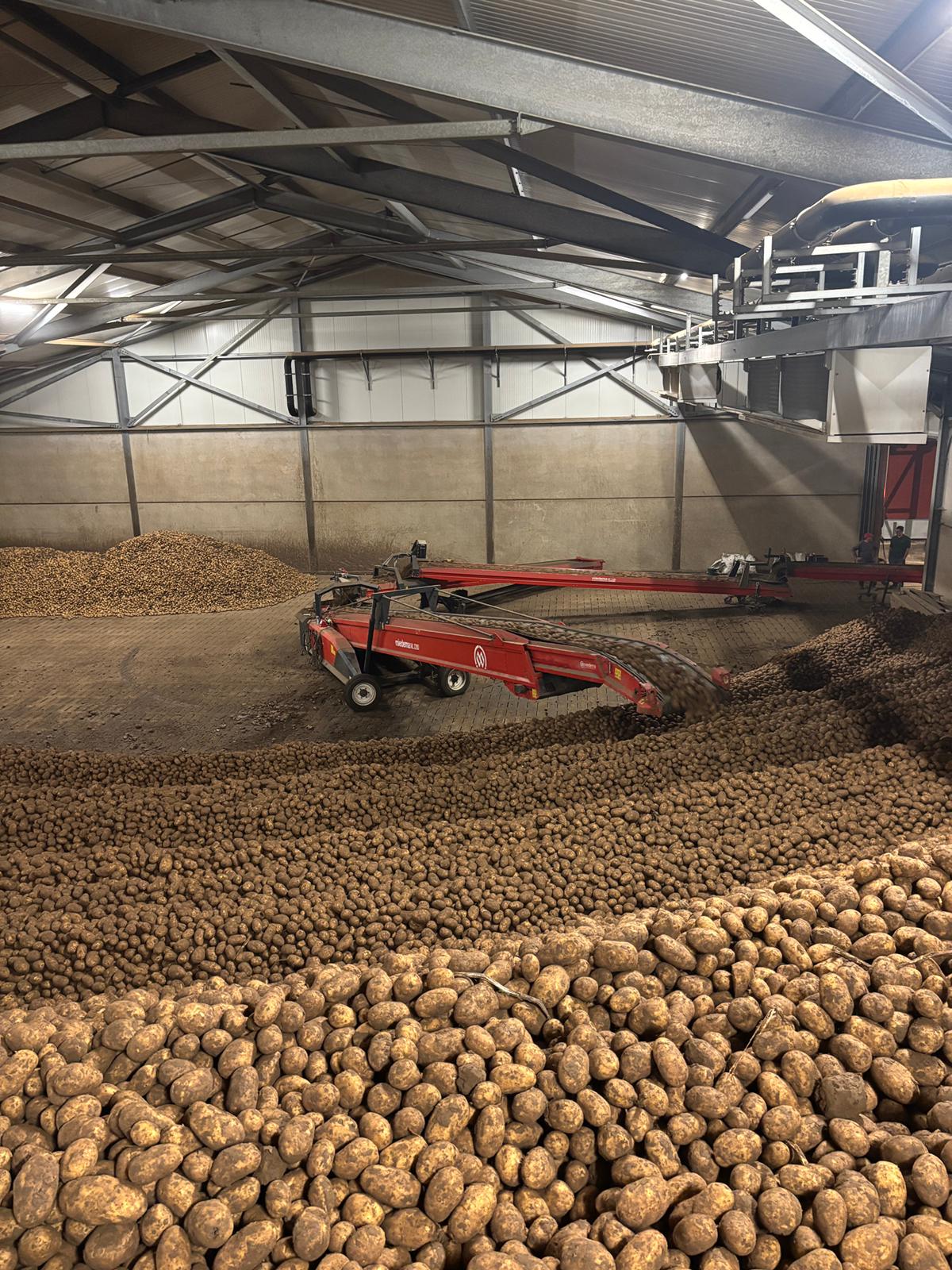

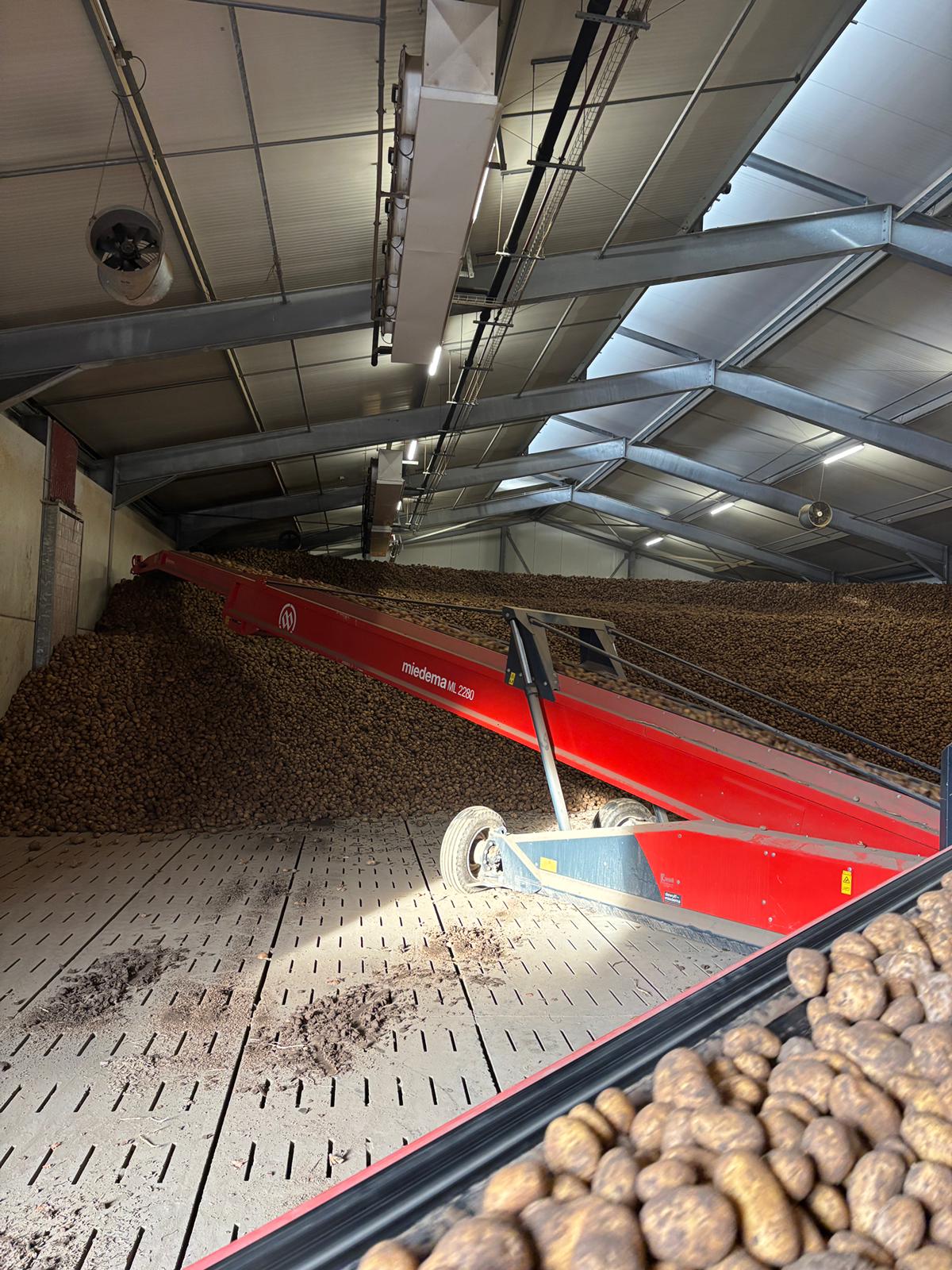

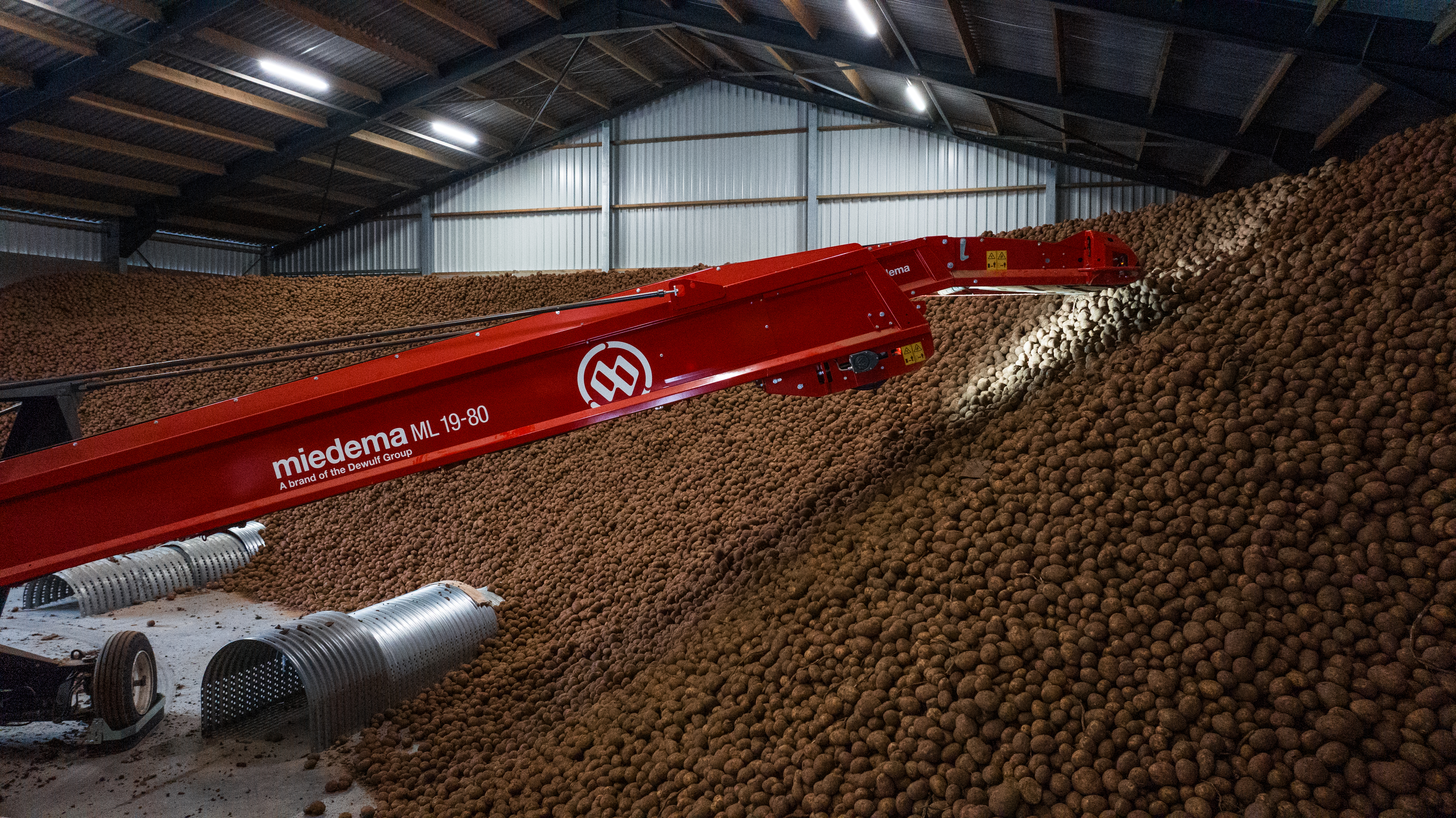

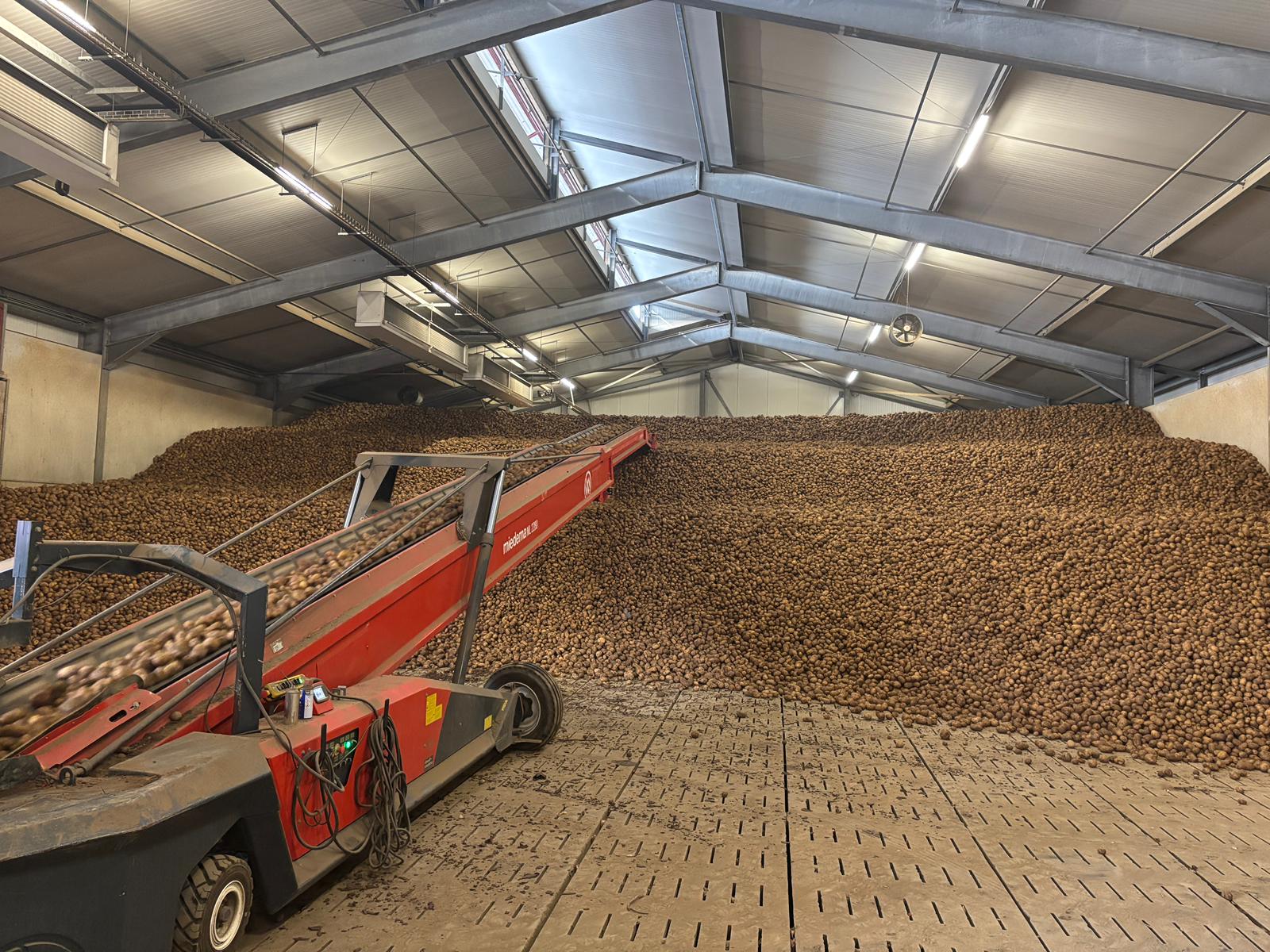

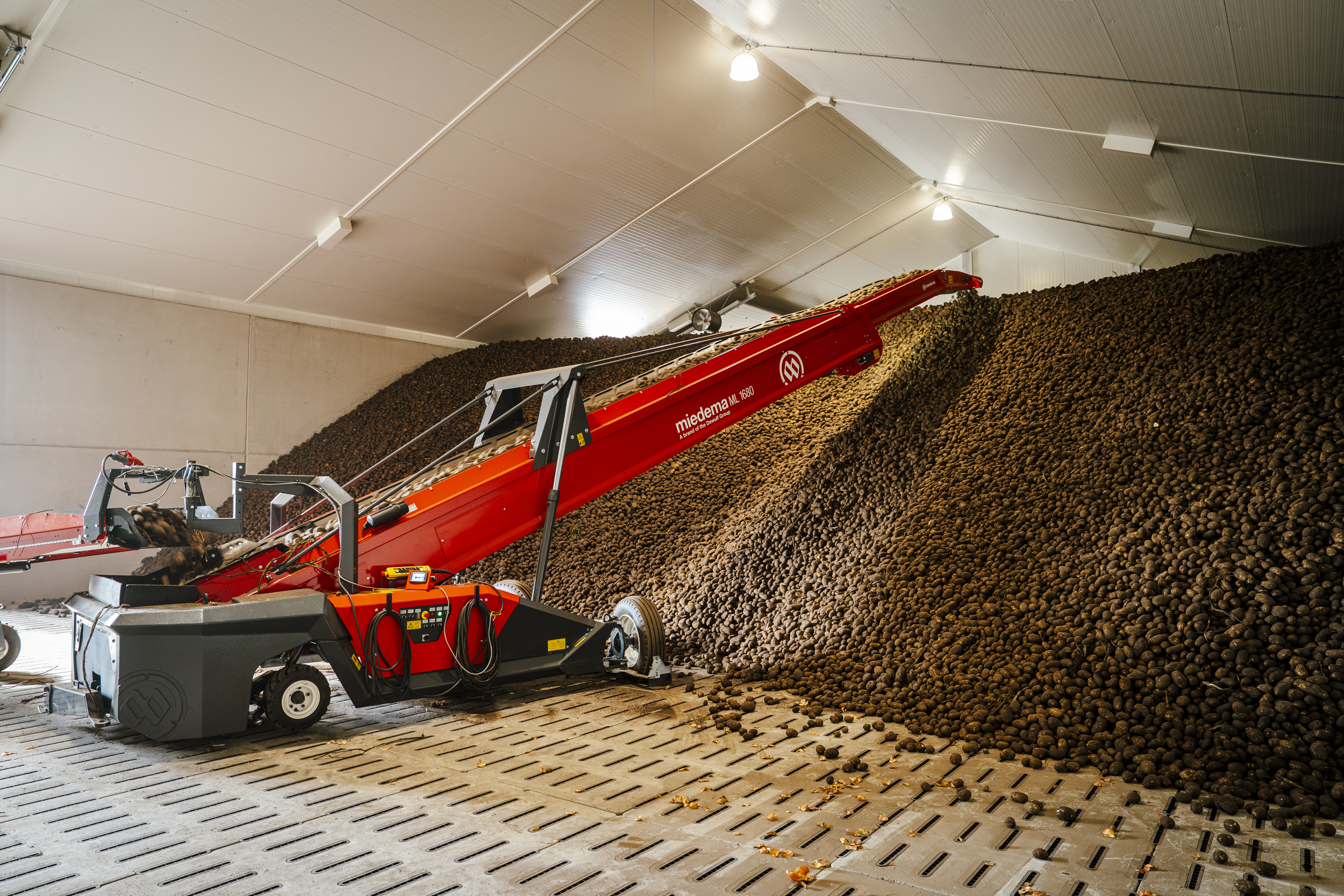

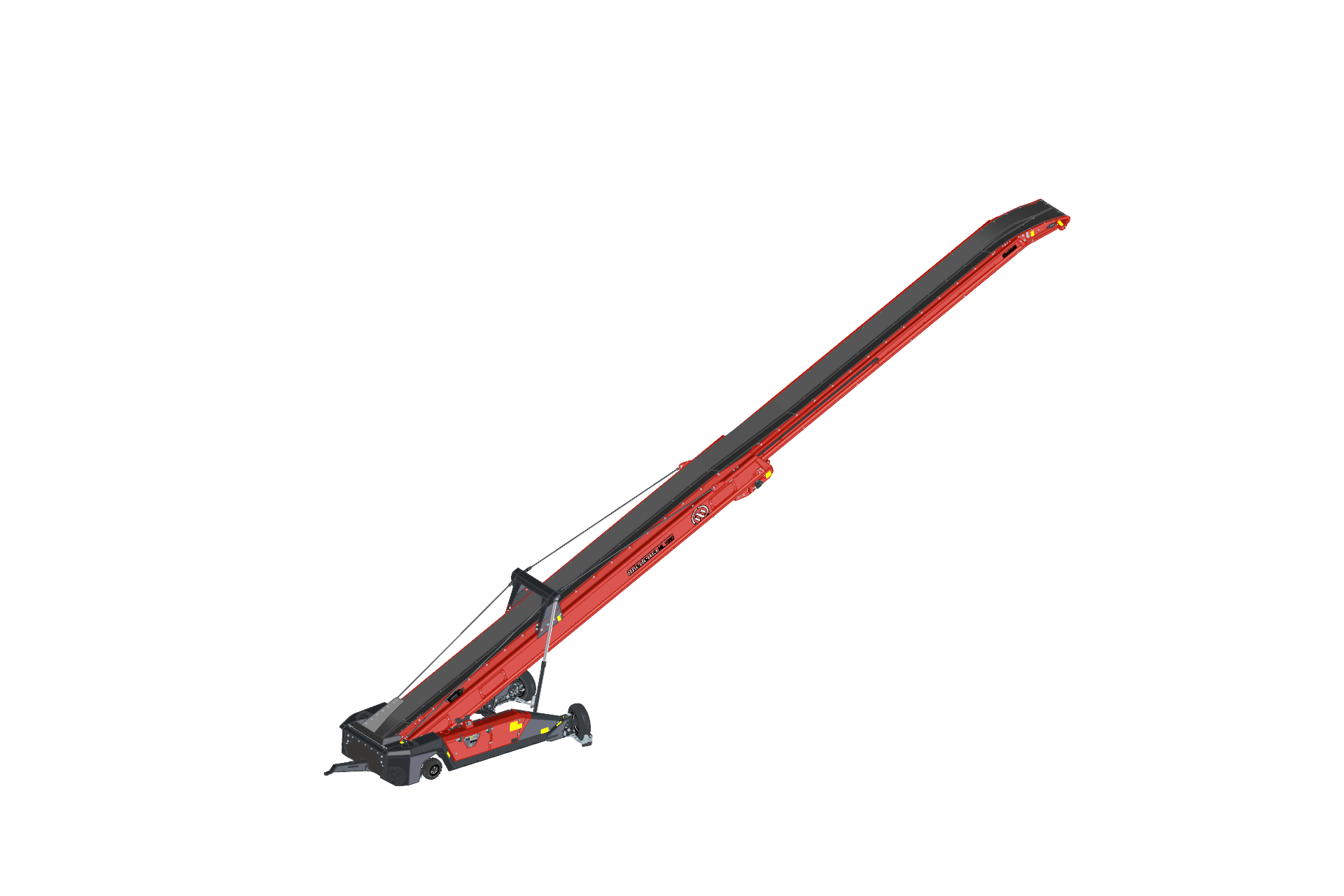

The ML 80 store loaders have an 80 cm wide, deep troughed conveyor belt with which a capacity of more than 180 tonnes/h can be achieved. The store loaders are available in lengths of 16, 19 or 22 metres. Switching between the working and transport position is achieved with the simple press of a button. Due to the various useful options our store loaders can be fully customised to meet your specific needs.
Quality and reliability
Dewulf has many years of experience with the transport of potatoes. The quality of the latest generation of Miedema store loaders has been achieved in close cooperation with our end users. As a result, our store loaders provide maximum capacity, an efficient product flow and less risk of damage. At Dewulf, the strength lies in the simplicity, which makes our store loaders absolutely reliable and practically indestructible.
Extremely user-friendly

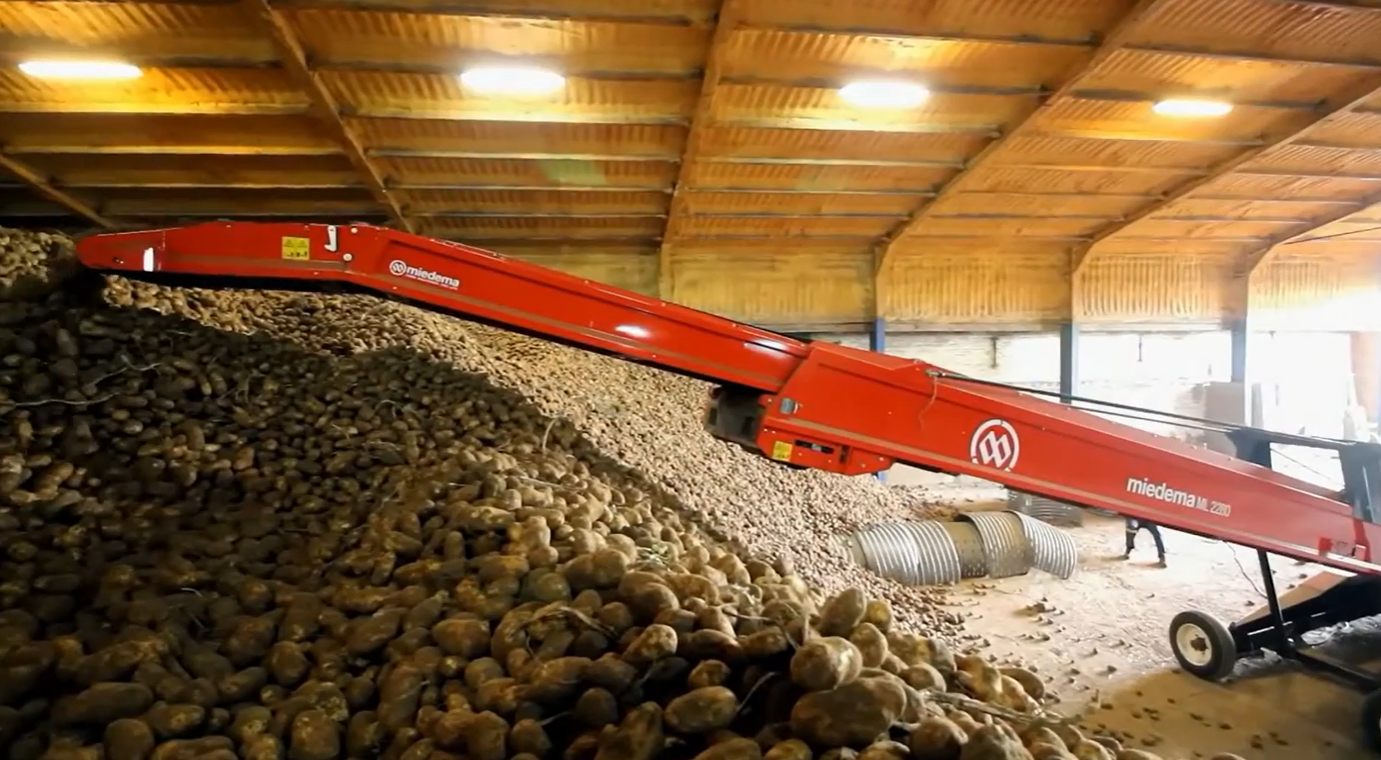

Our Miedema store loaders are equipped with various unique elements that promote the user-friendliness. Working enjoyably is often a result of specific details. The top of the store loader has a nodding section for the filling of storage buildings or lorries. Thanks to the small diameter of the returning roller, a minimum drop height is always ensured. The troughed conveyor belt guarantees a high capacity. The covered sensors for the side board detection control the reversing of the swivel direction using poles, which provides a particularly user-friendly experience. The useful remote control also contributes to this.
Working easily and safely

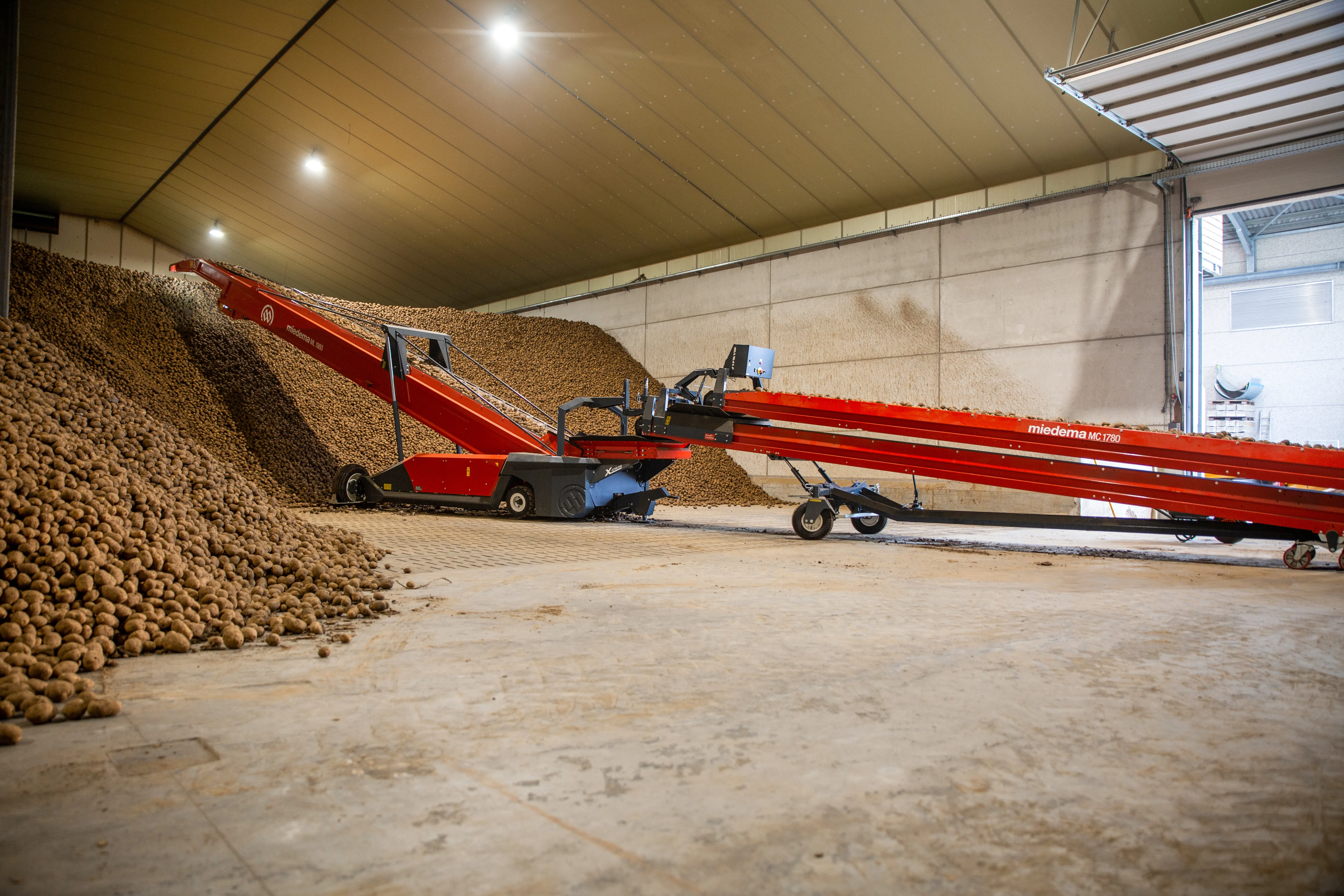

Dewulf has created an intelligent system called Start-Control that connects all the Miedema storage machines. This allows you to start the entire storage line with the remote control for the store loader. First the store loader/box filler starts, then the belt conveyor and finally the receiving hopper. As soon as the receiving hopper is empty, all the machines in the storage line will stop simultaneously. With the ingenious Start-Control, the optimal filling of all conveyor belts is ensured to minimise product damage and to prevent current spikes.
Four possible filling programs
The ML 80 store loaders are available with a selection of 4 possible filling programs to meet your specific needs.
Farmer
| The Farmer filling function automatically moves the store loader from side to side at a fixed speed, while the transport length and discharge height are controlled manually. The side board detection automatically reverses the direction of the store loader’s side-to-side movement when a side board is detected. |
Comfort
| With the Comfort filling function, the store loader’s side-to-side movement, transport length and discharge height are all controlled automatically. Starting a new terrace must be done manually. The side board detection automatically reverses the direction of the store loader’s side-to-side movement when a side board is detected. |
Dynamic
| The Dynamic filling function is also suitable for filling in terraces and includes the additional features ‘Top-Fill’, compensation of the incline angle capacity and virtual side boards. ‘Top-Fill’ keeps the ML at a constant height when filling the last layer. You can also choose to use virtually set side boards or virtual poles (pivot limitation). |
Premium
| The Premium filling function combines the best of the Comfort and Dynamic filling functions. The various layers are filled fully automatically, without manual intervention. |
- ■ = standard
- o = Optional
- - = Not applicable
| ML 80 | |||
| ML 1680 | ML 1980 | ML 2280 | |
| Minimum length [cm] | 972 | 1122 | 1272 |
| Maximum length [cm] | 1619 | 1919 | 2190 |
| Minimum overhang [cm] | 437 | 525 | 691 |
| Maximum overhang [cm] | 1176 | 1407 | 1610 |
| Total width min./max. [cm] | 267/284,9 | ||
| Minimum discharge height [cm] | 60 | 80 | 80 |
| Conveyor belt rubber | o | ||
| Conveyor belt PVC | o | ||
| Start-Control | ■ | ||
| Variable swivel and driving speed control | ■ | ||
| Variable swivel and driving speed control – remote control | o | ||
| Electric retraction and extension | ■ | ||
| CANbus set | o | ||
| Swivel limitation with poles | o | ||

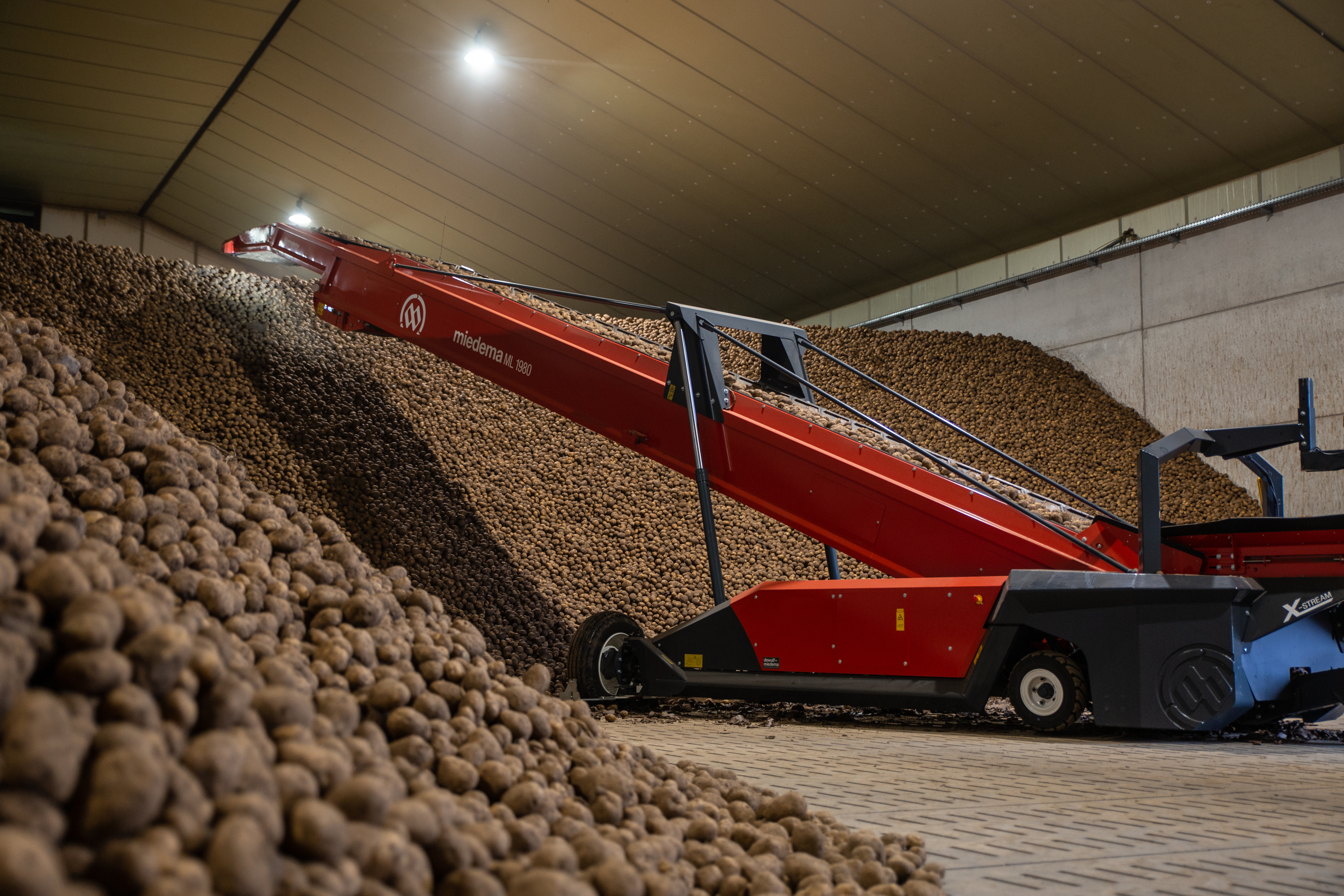

| X-Stream | o | ||
| Scraper return rollers | o | ||
| Work lamp | ■ | ||
| Coupler for MC / TAT | o | ||
