Name: Transfer combi
Brand: Dewulf

More net product in the truck

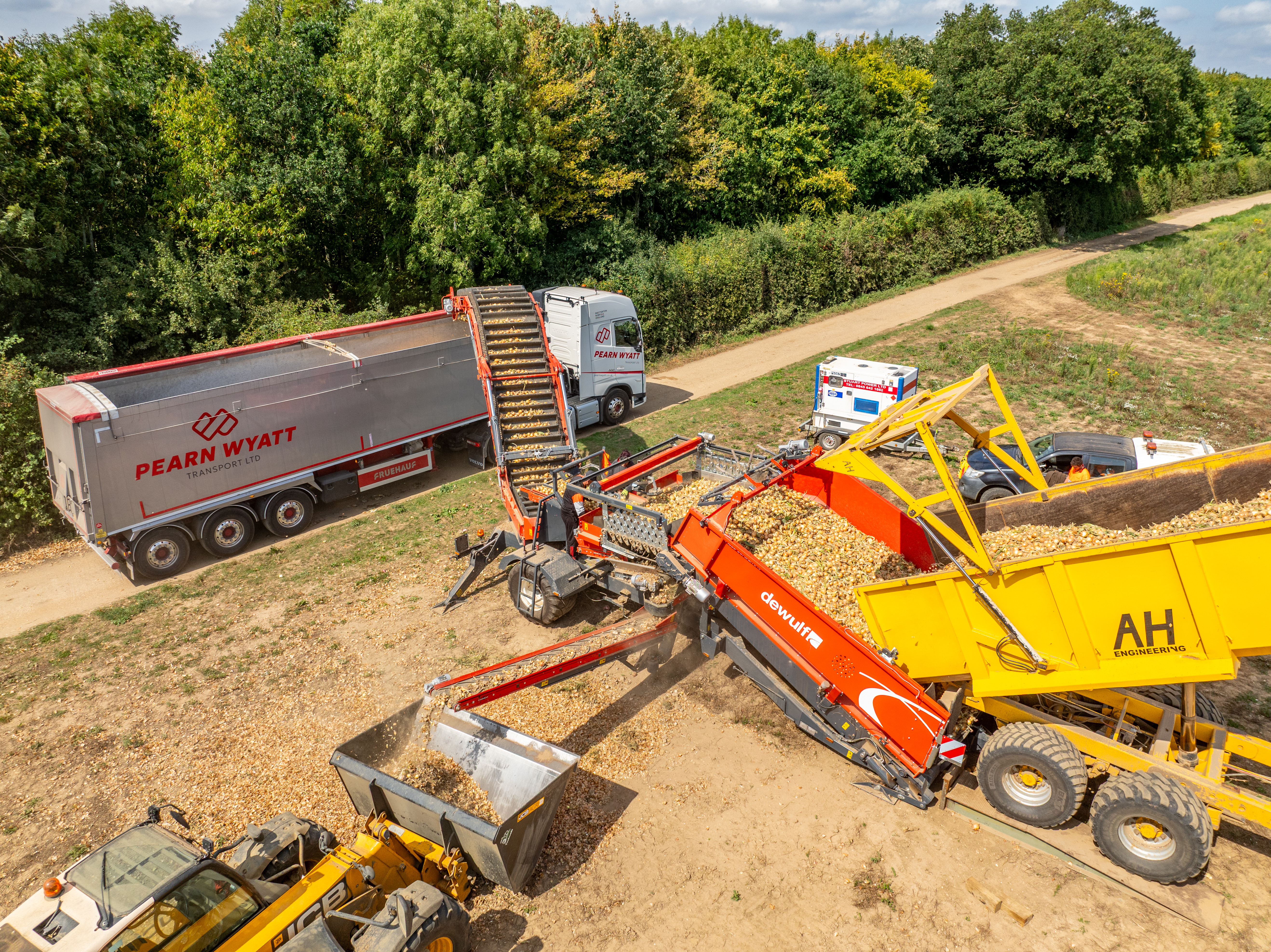

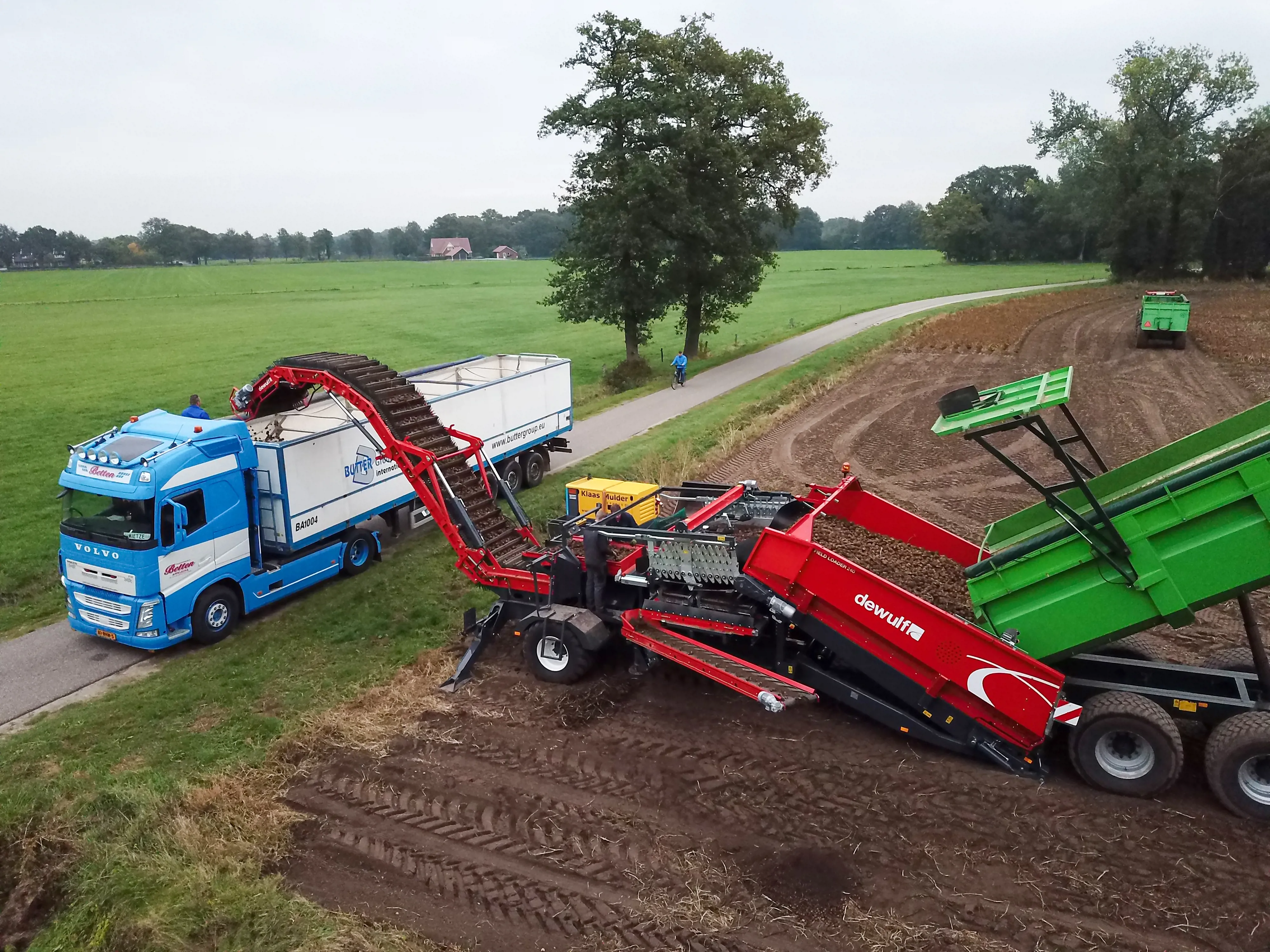

With the Field Loader 240, growers drastically reduce the amount of soil and waste that accompanies the product during loading in the field. This is because tipping trailers can unload the product directly into the transfer combi for cleaning before it is loaded into a truck. With this machine, transport vehicles are optimally filled with net product.

Suitable for on-road use

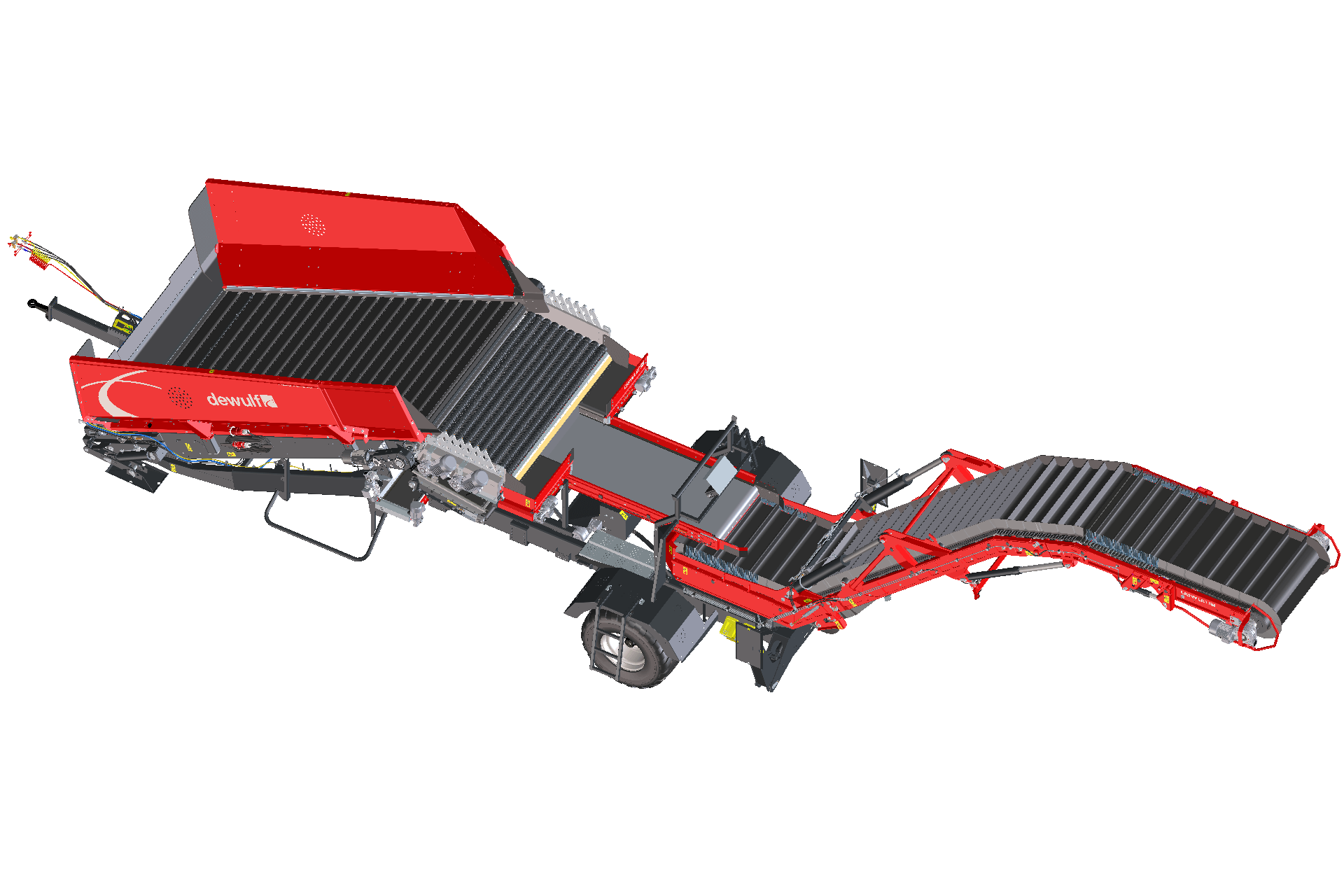

The Field Loader 240 is a compact transfer combi suitable for road transport. The optional steered axle also makes the machine extra manoeuvrable (20°). In the field it takes just a few minutes to prepare the machine for use.

High cleaning capacity & product-friendly discharge elevator

The bunker floor and the roller unit, familiar from the renowned MH series, ensure a good product flow and provide the necessary cleaning. The inspection table has space for two people. The wide, 4-piece, product-friendly discharge elevator of the Field Loader 240 has an extremely wide pivot range of 120° (60 left + 60 right) and can reach deep into a truck. Active side plates and soft flights prevent product damage.

A true stand-alone transfer combi

. In addition, the Field Loader 240 can also simply be connected to mains power. The Field Loader 240, like all other Dewulf storage machines, offers best-in-class low power consumption.

■ = standard
o = Optional
- = Not applicable

Capacity

Capacity (with discharge elevator at low speed) [tonnes/h]	150

Dimensions [transport position]

Length [mm]	11,254
Width max. [mm]	3,244
Height [mm]	3,991

Bunker

Entry width [mm]	3,090
Width bunker floor [mm]	2,400
Number of cleaning rollers	10
Option Smart-Pin	Yes

Waste conveyor

Pivot angle [°]	140
Discharge height max. [mm]	1,832

Discharge elevator

Pivot angle [°]	120 (60 left + 60 right)
Width [mm]	1,115
Discharge height min./max. [mm]	1,468 / 5,441
Reach at min. discharge height [mm]	6,187
Reach at max. discharge height [mm]	5,630
